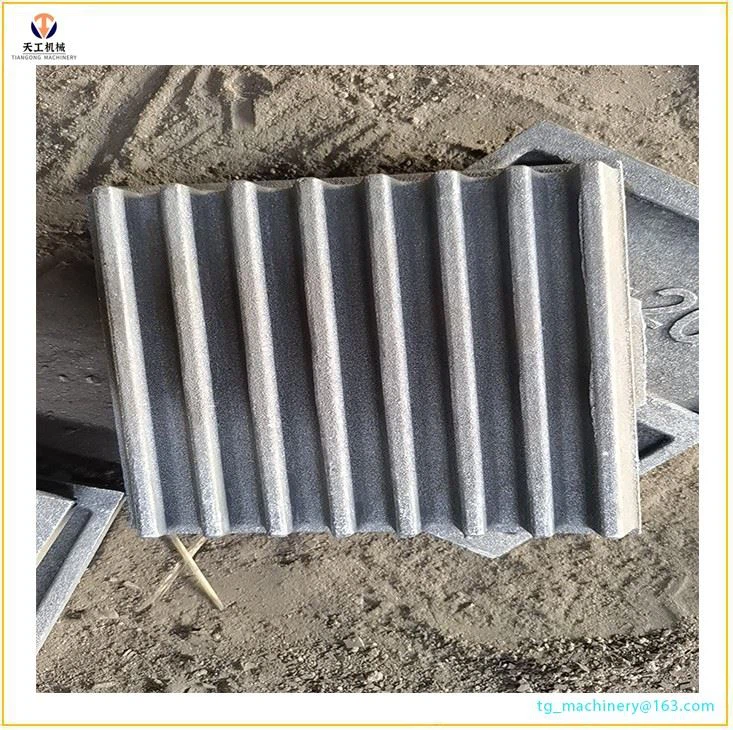

High-chromium Cast Iron Jaw Plate
Our High-chromium cast iron jaw plate Our High-chromium cast iron jaw plate is engineered for exceptional durability and performance in the most demanding crushing applications. The superior quality of the material stems from its unique alloy composition, which is rich in chromium carbides....
- Product Introduction
Our High-chromium cast iron jaw plate
Our High-chromium cast iron jaw plate is engineered for exceptional durability and performance in the most demanding crushing applications. The superior quality of the material stems from its unique alloy composition, which is rich in chromium carbides. These carbides are inherently extremely hard, granting the High-chromium cast iron jaw plate unparalleled resistance to abrasion and impact, significantly outlasting conventional manganese steel plates.
The primary advantage of this product is its remarkable wear resistance, which directly translates to reduced downtime and lower operating costs for your business. By choosing our High-chromium cast iron jaw plate, you are investing in a robust and long-lasting solution that maintains its structural integrity and crushing efficiency over a much longer service life, ensuring maximum productivity and a superior return on investment.
Commonly used high-chromium materials
Cr15
The Cr15 High-Chromium Cast Iron (e.g., Cr15Mo3) is the most widely used model. Its main advantage lies in achieving the optimal balance between wear resistance and toughness, while also offering the highest cost-performance ratio, making it the preferred choice for most medium-impact working conditions. However, its drawback is that its hardness and wear resistance are the lowest among the three.
Cr20
The Cr20 High-Chromium Cast Iron obtains superior hardness and wear resistance compared to Cr15 by increasing the chromium content, and possesses good corrosion resistance, making it suitable for environments with more severe wear but lesser impact. However, the trade-off is a reduction in toughness, along with a corresponding increase in cost and sensitivity to heat treatment processes.
Cr26
The Cr26 High-Chromium Cast Iron represents the performance peak of this material series. It boasts the highest hardness and unparalleled wear and corrosion resistance, specifically designed for extremely harsh, pure abrasive wear conditions. Yet, its disadvantages are equally prominent: it is the most brittle of the three, highly sensitive to impact loads, and has the highest manufacturing cost.
Products Description
Exceptional Wear Resistance
The most prominent advantage of the high-chromium cast iron jaw plate is its extreme wear resistance. This is because its interior is filled with high-hardness chromium carbides, which act like a hard "skeleton." When crushing materials such as ores, these hard points effectively resist abrasion and protect the matrix, significantly extending the equipment's service life. Its wear resistance is typically several times greater than that of ordinary manganese steel components.
High Hardness and Sturdiness
Through an optimized quenching process, this jaw plate achieves high overall hardness. The hard surface effectively prevents crushing or chipping by materials, which is the fundamental guarantee of its long-lasting wear resistance. However, the pursuit of extreme wear resistance through high hardness also means that its impact resistance is somewhat compromised.
Good Corrosion Resistance
Thanks to the chromium added to the material, a dense protective film forms on the surface of the jaw plate, effectively resisting erosion from moisture and air. This characteristic is particularly important in humid working environments, as it helps prevent accelerated wear caused by corrosion, thereby extending the component's service life.
Specific Applicable Working Conditions
This product is designed for high-wear, low-impact working conditions. Its material properties make it very sturdy and wear-resistant, but also relatively "afraid of impact." Therefore, it performs best in scenarios dominated by abrasive wear and is not suitable for applications involving severe or repeated impact loads.

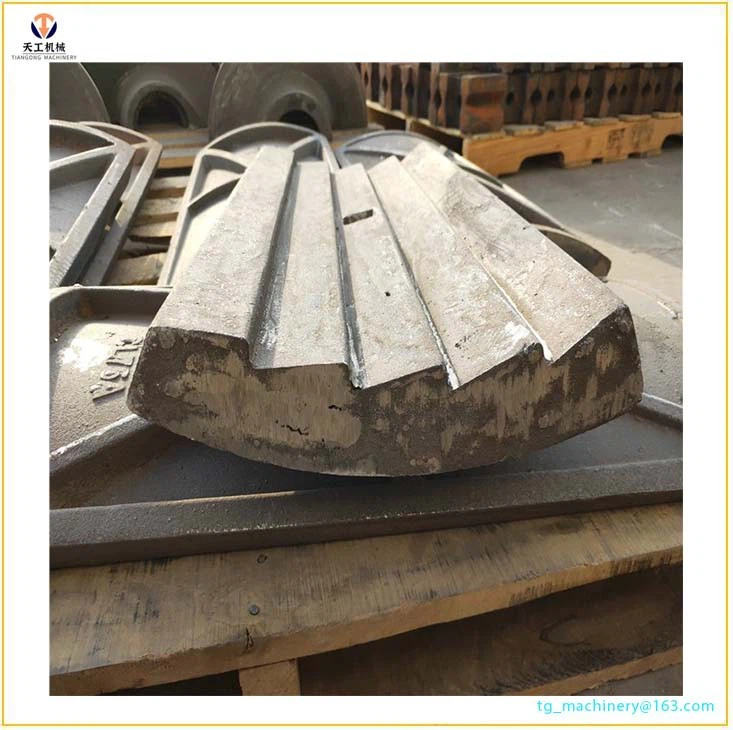

Product Showcase
Frequently Asked Questions
What materials is it suitable for crushing?
-
It is highly suitable for crushing highly abrasive materials such as granite, basalt, quartzite, and iron ore. However, there is a relatively high risk of fracture when processing tough metals (such as manganese steel parts) or unknown construction waste.
What are the advantages compared to ordinary manganese steel?
-
The advantages lie in its high initial hardness, better wear resistance, and longer service life. Manganese steel requires impact to harden, while high-chromium cast iron is extremely hard from the start, giving it a clear advantage in pure wear conditions.
Do you provide samples?
-
Yes, we can provide sample pieces for your inspection.
What is the price? Are there any discounts?
-
The price varies depending on the model, specifications, and order quantity. We adhere to the principle of high quality at a fair price. Large-volume purchases enjoy more competitive pricing and discounts. Please consult our sales representative for a detailed quotation.
How can payment be made?
-
We support multiple payment methods, including bank transfer and letter of credit. Specific terms will be clearly stated in the contract.
