Quality Control
We attach a detailed quality inspection report to each batch of goods to ensure that the product quality meets high standards and eliminates customers' quality concerns.
Professional Team
The company has a high-quality professional team composed of experts in sales, R&D, technology and after-sales service, which can fully meet the needs of different customers.
Advanced Equipment
The company is equipped with advanced physical and chemical testing equipment, including a spectrometer imported from Germany, a mechanical properties testing machine of American standards, and an impact tester and hardness tester of a well-known domestic brand, to ensure accurate detection of product quality.
Production Capacity
The company has a strong production capacity of 2,000 tons of precision castings and 3,000 tons of coated sand castings per year, which can efficiently meet customers' order needs.
We offer custom grate bar manufacturing solutions to meet your needs. Key customizable options:
● Material
● Size
● Shape
● Aperture
● Gradient Layout
● Surface Treatment
Our Company Has More Products to Offer, Please Browse the Product Categories on the Website, If You Have Any Needs, Please Contact Us.

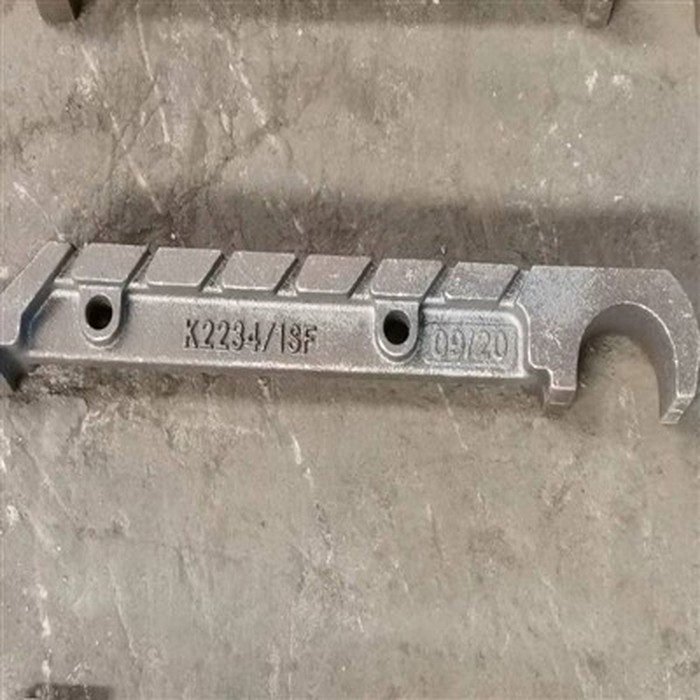

Grey Cast Iron Grate Bar EN-GJL-200
A grate bar refers to a series of strip holes in a combustion equipment opened by many air vents or combustion frequencies, usually made of metal materials, which can withstand constant high temperatures. The grate strip is usually located at the bottom of the furnace, can also be on the side or upper part of the combustion chamber, its role is to allow the gas and solid fuel through, promote the combustion reaction.
Heat Resistant Steel Intermediate Grate SCH11
Heat Resistant Steel Intermediate Grate Sch11 Heat resistant steel intermediate grate SCH11 Is one of the main grate strip products we produce, using precision casting process, manufacturer direct sales, excellent material, quality assurance, diverse specifications, welcome customization.
High Chrome Cast Steel Grate Bar
High Chrome Cast Steel Grate Bar is high quality and strong furnace strip, its production process is more complex, the cost is high, suitable for high temperature furnace. The advantages of steel grate are high strength, heat resistance, corrosion resistance, not easy to deformation, long service life.
Sinter Grate Bar
The grate strip is usually made of superalloy material and has extremely high wear and heat resistance. This material can maintain stable performance in high temperature environment, while can resist the wear of materials in the furnace and corrosion of high temperature gas. The grate strip is usually designed with a special structure to enhance its wear resistance and extend its service life.
|
Specification |
Chemical Composition (wt.) |
Specification |
Chemical Composition (wt.) |
||||||||||||
|
C |
Si |
Mn |
Cr |
Mo |
Ni |
Cu |
C |
Si |
Mn |
Cr |
Mo |
Ni |
Cu |
||
|
KmTBNi4Cr2 |
2.4-3.0 |
≤0.8 |
≤2.0 |
1.5-3.0 |
≤1.0 |
3.3-5.0 |
/ |
KmTBNi4Cr2 |
2.4-3.0 |
≤0.8 |
≤2.0 |
1.5-3.0 |
≤1.0 |
3.3-5.0 |
/ |
|
KmTBNi4Cr2- |
3.0-3.6 |
≤0.8 |
≤2.0 |
1.5-3.0 |
≤1.0 |
3.3 |
/ |
KmTBNi4Cr2- |
3.0-3.6 |
≤0.8 |
≤2.0 |
1.5-3.0 |
≤1.0 |
3.3 |
/ |
|
KmTBCr9Ni5 |
2.5-3.6 |
≤2.0 |
≤2.0 |
7.0-11.0 |
≤1.0 |
4.5-7.0 |
/ |
KmTBCr9Ni5 |
2.5-3.6 |
≤2.0 |
≤2.0 |
7.0-11.0 |
≤1.0 |
4.5-7.0 |
/ |
|
Grades |
Softening annealing treatment |
Hardening |
Stress relief |
|
KmTBCr12 |
Keep at 920-960℃ for 1-8h, slowly cool to 700-750℃ and keep it for 4-8h, cool to below 600℃, then air cooling or furnace cooling |
Heat preservation at 920-980℃ for 2-6h, air-cooled after furnace |
200-300℃ heat preservation for 2-8h, air cooling or furnace cooling |
|
KmTBCr15Mo |
Insulation at 920-960℃ for 1-8h, slow cooling to 700-750℃ for 4-8h, slow cooling to below 600℃ |
Heat preservation at 920-980℃ for 2-6h, air-cooled after furnace |
|
|
KmTBCr20Mo |
960-1000℃ heat preservation for 1-8h, slow cooling to 700-750℃, heat preservation 4-10h, slow cooling to below 600℃, air cooling or furnace cooling |
Heat preservation at 960-1020℃ for 2-6h, air cooling out of the furnace |
|
|
KmTBCr26 |
960-1060℃ heat preservation for 2-6h, air cooling after furnace |
● Erosion of high temperature and high speed powder-gas two-phase flow.
● Corrosion: Oxidation and corrosion of CO, CO2, SO2 and water vapor in the atmosphere.
● Large temperature changes: During sintering, the temperature of the sintered ore is as high as 1100℃, and the temperature of the grate is generally 800-1000℃, after unloading, the temperature in the air drops rapidly to 100-300℃.
● Impact and friction and wear of sintered ore: Impact and friction and wear of sintered ore during loading and unloading;
● High temperature load-bearing: Bear the gravity of sinter during high temperature sintering.
Overthrust Grates
Biomass Step Grates
Biomass Combustion
Solid Fuel Combustion
Bark Burner Furnace
|
Packaging |
Wooden box |
|
Transport |
Road transport, rail transport, sea transport, air transport |
As one of the leading grate bar manufacturers and suppliers in China, we warmly welcome you to buy or wholesale discount grate bar made in China here from our factory. All our products are with high quality and low price. For pricelist and quotation, contact us now.
