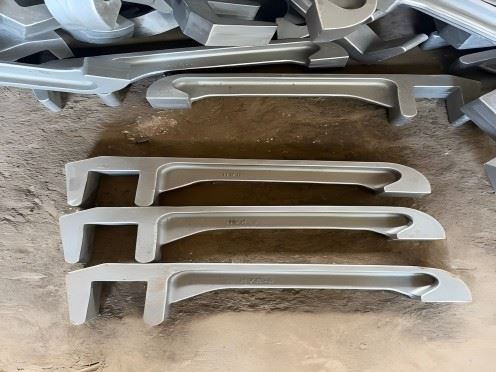

Refractory Steel Boiler Grate
What is refractory steel boiler grate ? The refractory steel boiler grate is a core combustion-bearing component specifically designed for boilers that burn renewable biomass fuels such as wood chips, rice husks, straw, palm shells, and biomass pellets to achieve heat energy conversion....
- Product Introduction
What is refractory steel boiler grate ?
The refractory steel boiler grate is a core combustion-bearing component specifically designed for boilers that burn renewable biomass fuels such as wood chips, rice husks, straw, palm shells, and biomass pellets to achieve heat energy conversion. Manufactured from high-temperature resistant alloy cast steel, it is installed at the bottom of the boiler furnace and completes the entire process of fuel bearing, ventilated combustion, and automatic slag discharge.
Different from ordinary coal-fired grates, it features specialized structural and material optimizations tailored to the characteristics of biomass fuels: high ash content, strong clinkering tendency, and high corrosion caused by alkali metals and chlorine, ensuring long service life and stable operation in harsh biomass combustion conditions.
Our Factory & Products
Core Functions
Fuel Support: Uniformly supports biomass fuel and forms a stable fuel bed.
deliver uniform penetration of primary combustion air.
Continuous Slag Discharge: Reciprocating movement of the chain automatically discharges combusted ash and slag, enabling uninterrupted boiler operation.
High Temperature & Erosion Resistance: Retains structural strength in high-temperature, highly corrosive and severely abrasive service conditions, with no deformation or burning loss.
Our Product Advantages
Higher Ventilation Rate
Featuring optimized ventilation gaps (3–8 mm, anti-clinkering design) between grate bars, our refractory steel boiler grate, deliver primary combustion air uniformly to the bottom of the fuel bed, enabling staged combustion for complete fuel combustion. This reduces exhaust heat loss and pollutant emissions, with a ventilation area 20% larger than standard grates on the market.
Customization & Anti-Clinkering Performance
Backed by our professional in-house design team, we provide custom sizes and material solutions tailored to your boiler drawings and fuel types. Our proprietary anti-clinkering structure features a smooth surface and 3–5° inclined design for grate bars, combined with continuous chain drive to realize automatic slag scraping. This reduces manual de-coking frequency from 1–2 times per day to only once per week.
Superior High-Temperature Corrosion Resistance
Our grates are fabricated from high-grade high-chromium-nickel alloys, including ZG35Cr24Ni7SiN and ZG40Cr9Si2, specially formulated to resist high-temperature carbon (C) corrosion.
Enhanced Wear Resistance
The working surfaces of the grate bars are treated with as-cast thickening and quenching processes to resist fuel particle erosion and slag abrasion. Their service life reaches 2–3 times that of ordinary carbon steel grates
Main Structural Types
Chain Grate (Most Prevalent)Composed of driving sprockets, driven sprockets, transmission chains and grate bar assemblies.It features continuous operation and a stable fuel bed, and is suitable for 1–35 t/h medium and large-capacity biomass boilers.
Reciprocating Grate Adopts push-actuated motion. It features a simple structure and is easy to maintain,making it ideal for small and medium-sized biomass boilers.
Crossbeam / Lamellar Grate Provides a large ventilation area and excellent sealing performance,and is specially designed for high-power biomass utility boilers.
Frequently Asked Questions
Are you a direct source factory? Is your price competitive?
+
-
A: We are a professional casting factory based in Tengzhou, Shandong, covering 26,000 square meters with a technical and production team of over 100 members. With no trading intermediaries, our prices are 10%–15% lower than distributor prices. We welcome you to visit our factory at any time..
How do you guarantee material compliance? Can you provide inspection reports?
+
-
A: All our grates are manufactured from high-grade alloy steels including HK40, HP40 and Cr30Ni20Mo. Our factory is equipped with two induction furnaces with a temperature control accuracy of ±0.5 ℃.We apply electromagnetic stirring, slag removal and degassing processes to ensure a material purity of 99.9%.We are also equipped with imported spectrometers and non-destructive testing (NDT) instruments. Every batch is accompanied by material spectral reports and high-temperature mechanical property reports.The full production process is traceable for each individual product. Our factory holds ISO 9001 and CE certifications, and our materials fully comply with international standards including ASTM A297 and EN 10204.
Can we visit your factory or verify production capacity?
+
-
A: Factory visits are welcome at any time. You can inspect our complete production flow on site, including the wax mold shop, sand coating shop and finishing shop. Our sample exhibition hall showcases refractory steel boiler grates in various models. We can also provide on-site production videos, major shipment records of refractory steel boiler grates from the past 1–2 years, as well as third-party production capacity audit reports, allowing you to verify our factory's strength directly.
