Do boiler grate bars come in different shapes?

Hey there! As a supplier of Boiler Grate Bars, I often get asked a bunch of questions about these essential components. One question that pops up quite frequently is, "Do boiler grate bars come in different shapes?" Well, you bet they do! In this blog, I'm gonna take you through the ins and outs of the various shapes of boiler grate bars, why they matter, and how you can pick the right one for your needs.

Let's start by understanding what boiler grate bars are. They're basically parts of a boiler that support the fuel and allow air to flow through it for proper combustion. Without the right grate bars, your boiler just won't work as efficiently as it should. And that's where the different shapes come in. Each shape is designed with a specific function and application in mind.

Common Shapes of Boiler Grate Bars

Flat Grate Bars

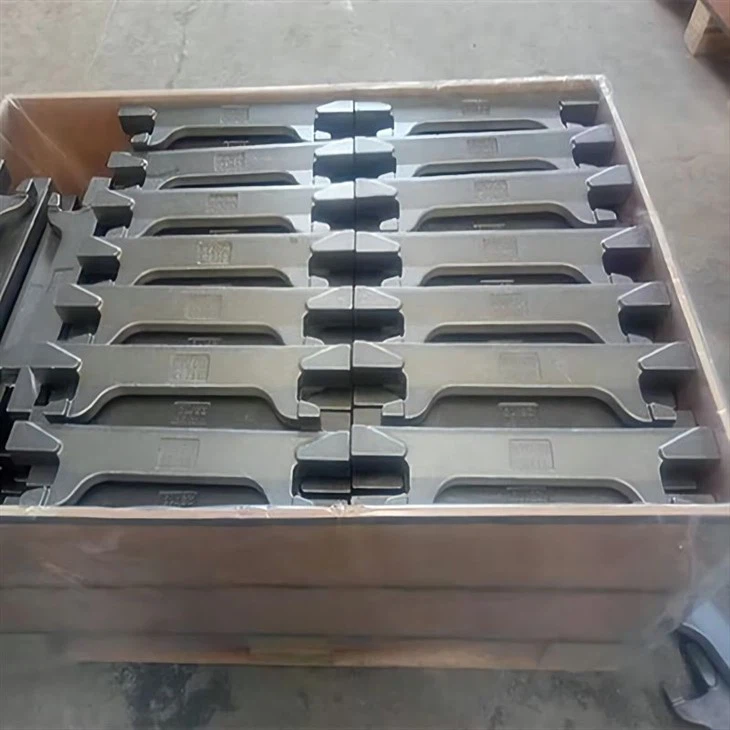

Flat grate bars are probably the most basic and commonly used type. They're, well, flat! These bars are super easy to install and maintain. They're great for small - scale boilers where the fuel load isn't too heavy. The flat surface provides a stable base for the fuel, and air can flow through the gaps between the bars. If you're running a small industrial boiler or a residential heating system, flat grate bars might be the way to go. You can check out our Boiler Parts Grate Bar section to see some of our flat grate bar options.

Corrugated Grate Bars

Corrugated grate bars have a wavy or ridged surface. This design increases the surface area in contact with the fuel, which means better heat transfer. The ridges also help to break up the fuel as it burns, allowing for more efficient combustion. These bars are often used in larger boilers where a higher heat output is required. They're also more resistant to wear and tear compared to flat bars because the corrugations distribute the stress more evenly. If you're looking for a grate bar that can handle a heavy fuel load and provide better performance, corrugated grate bars are worth considering.

Step Grate Bars

Step grate bars are designed in a stepped pattern. This unique shape allows the fuel to move gradually down the grate as it burns. It helps to ensure a more uniform combustion process because the fuel is constantly being re - exposed to fresh air. Step grate bars are commonly used in boilers that burn solid fuels like coal or wood. They're especially useful in power plants where a large amount of fuel needs to be burned continuously. Check out our Grate Bar for Power Plant to find step grate bars suitable for power generation.

Air - Cooled Grate Bars

Air - cooled grate bars are a bit different. They have built - in channels or passages for air to flow through. This air cools the bars during the combustion process, preventing them from overheating and getting damaged. These bars are often used in high - temperature applications, such as in large industrial boilers or in boilers that burn high - energy fuels. The Air - cooled Reciprocating Mechanical Grate is a great example of a system that uses air - cooled grate bars.

Why Shape Matters

The shape of the boiler grate bar has a huge impact on the performance of the boiler. A well - chosen shape can improve combustion efficiency, reduce fuel consumption, and extend the lifespan of the boiler. For example, if you use flat grate bars in a large - scale power plant where a heavy fuel load is required, the bars might not be able to handle the stress, leading to premature wear and inefficient combustion. On the other hand, using step grate bars in a small residential boiler might be overkill and could increase the cost without providing any real benefits.

The shape also affects the air distribution in the boiler. Different shapes allow for different air flow patterns, which can directly impact how well the fuel burns. For instance, corrugated grate bars create a more turbulent air flow, which helps to mix the fuel and air more effectively, resulting in a more complete combustion.

Factors to Consider When Choosing a Shape

When you're trying to decide which shape of boiler grate bar is right for you, there are a few things you need to think about.

Fuel Type

The type of fuel you're using is crucial. If you're burning coal, you might need a grate bar that can handle the weight and the way coal burns. Step grate bars or corrugated grate bars are often a good choice for coal. If you're using wood chips or biomass, flat grate bars might be sufficient.

Boiler Size

The size of your boiler matters a lot. Smaller boilers usually don't need the more complex shapes. Flat or simple corrugated bars are usually enough. Larger boilers, especially those in industrial or power - generation settings, often require more specialized shapes like step grate bars or air - cooled grate bars.

Operating Conditions

The temperature and pressure in the boiler are also important. High - temperature applications call for air - cooled grate bars to prevent overheating. If the boiler operates under high pressure, you need a grate bar that can withstand the stress.

Our Range of Boiler Grate Bars

As a supplier, we offer a wide variety of boiler grate bars in different shapes and sizes. We understand that every customer has unique needs, and we're committed to providing the best solutions. Whether you need a flat grate bar for your small residential boiler or a high - performance air - cooled grate bar for an industrial power plant, we've got you covered.

We source our materials from top - notch suppliers and use advanced manufacturing techniques to ensure the highest quality of our grate bars. Our team of experts is always ready to help you choose the right shape and size for your specific application.

Contact Us for Purchase

If you're in the market for boiler grate bars, don't hesitate to reach out. We can provide you with detailed information about our products, offer competitive pricing, and even help with installation and maintenance advice. Whether you're a small business owner or a large - scale power plant operator, we're here to serve you. Just let us know your requirements, and we'll work with you to find the perfect solution.
